New QRPp challenge

Would you like to share your field kit or field reports with others? Please share it here. We will pick some of these to share on QRPer.com as well so please include your callsign so we can contact you!
Post Reply
N8TGQ
Posts: 88
Joined: Tue Jun 21, 2022 5:06 am

New QRPp challenge

Post by N8TGQ »

I enjoy going to the local parks to play radio. I don't drive, so getting to parks for POTA are too far away. POTA is boring to me anyway. Like shooting fish in a barrel using a $30k bass boat.

I try calling CQ, but if I'm not on the spot page and showing up on their waterfall, no one bothers to answer.

So, I got an OXO transmitter kit from Kanga, a LPF board from Zachtek a and set of QRP crystals from John, KC9ON, at 3rd planet solar. I cobbled it all together to make a mighty 200 mw, 7 band transmitter.

Now I go to the park with the transmitter, a portable shortwave receiver and a linked EFHW. I do what I call "beaconing", sort of like a manual form of WSPR.
I just send N8TGQ/b 10 or 12 times on each band after checking to see if I'm interfering with someone. Then I go to the next band and try again.

When I get back to my place, I check the Reverse Beacon Network to see how I did. Some days the results are pretty surprising.

Just another way to have fun with ham radio!
Attachments

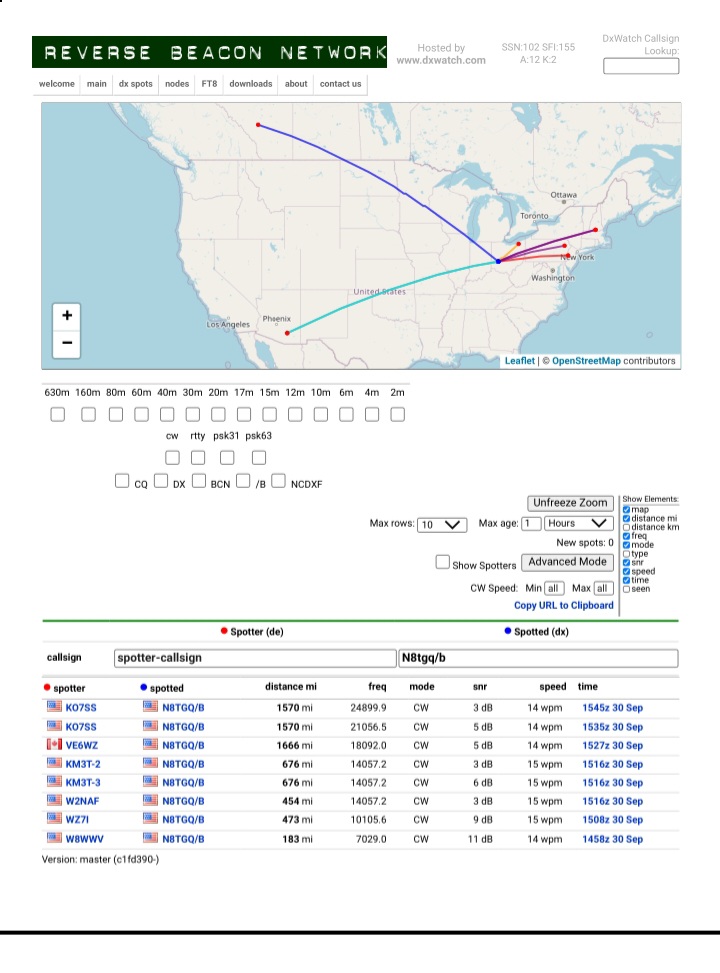

OXO RBN 09302023.jpg
OXO RBN 09302023.jpg (149.81 KiB) Viewed 6942 times

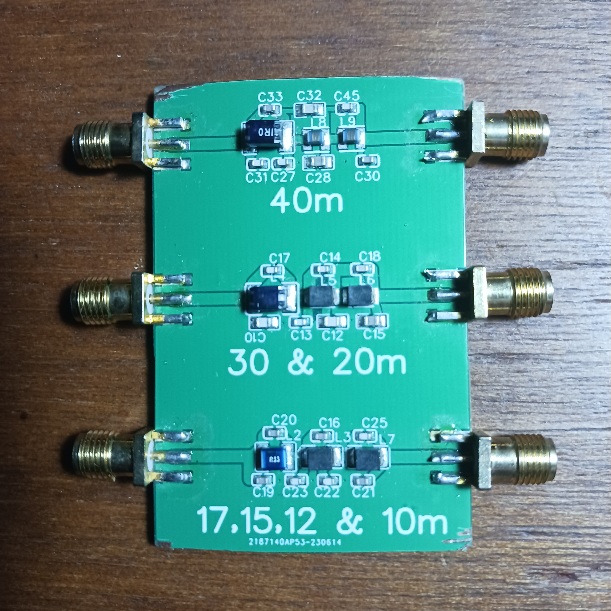

LPF alone.jpg
LPF alone.jpg (162.61 KiB) Viewed 6942 times
OXO alone.jpg
OXO alone.jpg (116.57 KiB) Viewed 6942 times
Rick N8TGQ
